6mm Coreless Motor

M112 6mm Coreless Motor : 6x12mm
M113 6mm Coreless Motor : 6x15mm



Description: These are great little workhorses, the same motor used in the P483 Gearboxes(6x12mm Motor) and P484 Gearboxes (6x15mm Motor). These motors have long 80mm leads for easy installation. 1.4g

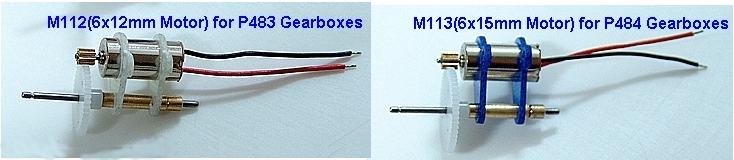

    M112: 6x12mm Green Motor 4.5~8 ohm for P483 Gearboxes
    M113: 6x15mm Red Motor 4~5 ohm for P484 Gearboxes

size

shaft

voltage

resiatance

Rated

No-Load



Load

Speed

Speed



(mm)

(mm)

(V)

(ohm)

(g/cm)

(rpm)

(rpm)

M112

6X12

0.8

3

4.5~8

0.9

36000

46000

M113

6X15

0.8

3

4~5

2.5

25000

36000
